PID shows up on just about every espresso machine spec sheet, and it's one of the features we get asked about most. The short answer is that it's a smarter way to keep your boiler at the temperature you want.
Whether you actually need one comes down to the machine it's in, the coffee you like to brew, and how much temperature babysitting you're willing to do. We'll walk you through what a PID does, what it replaces, and where it really earns its keep.
In This Article
What a PID Actually Is
PID stands for proportional, integral, derivative. Those are the three calculations a small digital controller runs to decide how much power to send to the heating element.
A temperature probe in or on the boiler reports the current temperature to the controller many times per second. The controller compares that reading to the target you have set and adjusts the heater accordingly. Rather than switching the element fully on until the water overshoots and fully off until it falls too far, it delivers short, measured pulses of power, easing off as it approaches the target and anticipating the drop that comes when cold water enters the boiler.
The three terms each handle a different part of that job. The proportional part responds to how far the temperature is from target right now. The integral part corrects for small errors that persist over time. The derivative part reacts to how quickly the temperature is changing, which keeps the controller from overshooting. The good news is that you'll never need to touch these values on a home machine, since manufacturers tune them at the factory.
The result is a boiler that sits very close to one temperature rather than wandering across a range. Many PID machines also let you set that temperature yourself, either from a small display or through a menu.
What It Replaces: Thermostats and Pressurestats
To appreciate what a PID changes, it helps to know what it replaces.
Thermostats
Many single boiler machines use a simple mechanical thermostat. It opens and closes the heater circuit at fixed points, so the element runs at full power until the boiler passes the upper point, then shuts off until the water cools past the lower point. Between those points the temperature is always moving, and where it happens to be when you start a shot depends on timing. That swing is the reason temperature surfing exists. Our guide to temperature surfing on single boiler machines explains how to work with it.
Pressurestats
Heat exchanger machines usually regulate their steam boiler with a pressurestat, a switch that reads boiler pressure instead of temperature. It works on the same on and off principle with a band between the two points, so the boiler pressure, and with it the temperature, cycles up and down through the day. Pressurestats are durable and simple to service, which is why plenty of excellent machines still use them.
A PID doesn't make either device obsolete for every buyer. It simply narrows the range the boiler moves through and makes the result repeatable from one shot to the next.
Why Brew Temperature Matters
Extraction is sensitive to water temperature. Hotter water dissolves more from the coffee and does it faster, while cooler water extracts less. Most brewing guidance places espresso somewhere around 195 to 205°F, and within that range a few degrees can move a shot noticeably toward sour or toward bitter.
The trouble with an unregulated swing is that it adds a variable you can't see. You can keep your dose, grind, and yield identical and still get shots that taste different, because the water was at a different point in its cycle each time. A PID removes most of that variable, which makes the rest of your adjustments easier to read. For shots that still taste off, our guide to sour or bitter espresso covers the other levers.
Adjustable temperature is the second benefit. Lighter roasts are denser and tend to need hotter water to extract fully, while darker roasts often taste better a little cooler. Being able to set the boiler a few degrees up or down gives you another tool for matching the machine to the coffee. Our article on working with light roast espresso goes further into this.
How Much It Helps by Machine Type
Single Boiler Machines

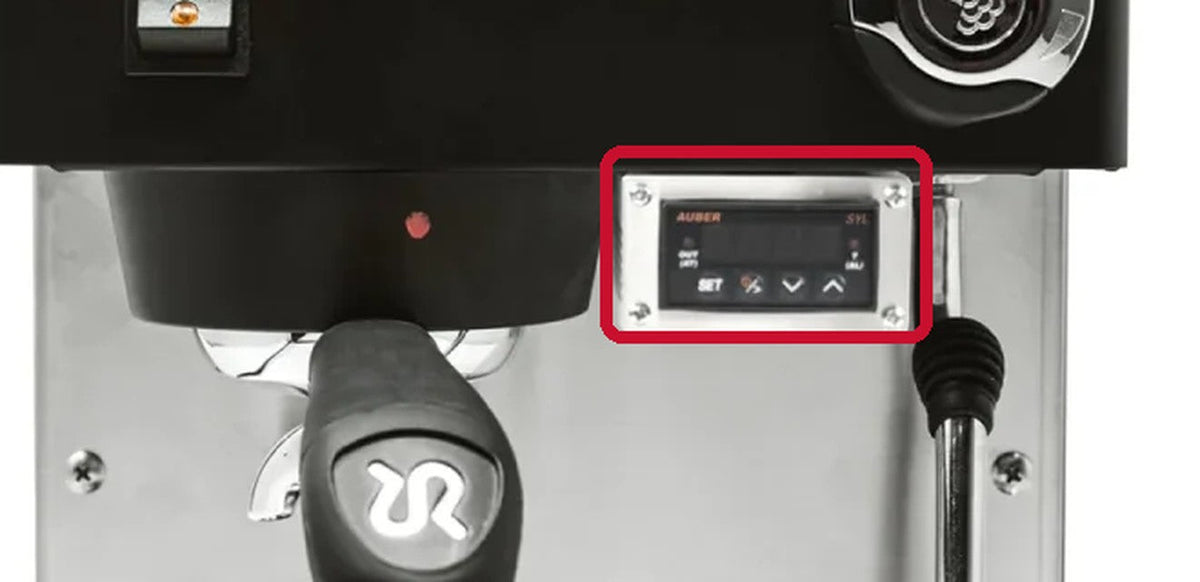

This is where a PID makes the biggest difference. A single boiler handles both brewing and steaming, and a thermostat-controlled one swings across a wide range. Adding a PID turns it into a machine that hits the same brew temperature every time without any surfing, which is why it's one of the upgrades we recommend most often to folks shopping for a single boiler. The Rancilio Silvia PID is a good example of a classic single boiler that becomes far more predictable with one. Our marketing blog has a closer look at the Silvia with PID with all the details.
Dual Boiler Machines
Dual boilers dedicate one boiler to brewing, and that brew boiler is almost always PID controlled. Because the brew water is heated directly, the set temperature translates closely to what reaches the coffee. The Rancilio Silvia Pro X pairs a PID-controlled brew boiler with a separate steam boiler, which is the arrangement most people picture when they think of precise temperature control.
Heat Exchanger Machines
Here the benefit is more modest. On a heat exchanger, the PID usually controls the steam boiler, and brew water is heated indirectly as it passes through a tube inside that boiler. A PID steadies the steam boiler, which in turn steadies the brew water, but the water sitting in the exchanger still overheats while the machine idles. You'll still run a short cooling flush before brewing on most heat exchanger machines, PID or not.
Thermoblock and Superautomatic Machines
Many thermoblock and thermocoil machines heat water on demand and use their own electronic control. Superautomatics manage temperature internally and usually offer a few preset levels. In both cases there's generally nothing to add, and the question is answered by the design.
What a PID Will Not Do
A PID controls the boiler, not the coffee. The number on the display is the temperature at the probe, and the water that reaches the puck is usually a little cooler after travelling through the group. Some machines apply an offset so the display approximates brew temperature, while others show boiler temperature directly. Either way, treat the setting as a dial you adjust by taste rather than a precise reading of what is happening in the basket.
A PID also won't rescue a shot that's off for other reasons. Shots that run fast or channel on a thermostat machine will do the same thing on a PID machine, just more consistently! Temperature is one variable among several, and usually not the first one to chase.
Finally, a PID doesn't change how quickly a machine heats up from cold. A slow warm-up, or a machine that never seems to reach temperature, has other causes. Our guide to an espresso machine not heating up covers them.
Do You Need One?
We'll be honest with you here: it really depends on how you brew.
On a single boiler machine, a PID is one of the most useful features you can pay for, especially for anyone who wants repeatable shots without learning a routine to manage temperature. Plenty of folks who mostly brew medium and darker roasts are perfectly happy with a short surfing routine, and a thermostat-controlled machine still makes excellent espresso. There's a lot to love about a simple machine! Dual boilers are a different story, since you'll almost certainly get a PID whether you ask for one or not.
Aftermarket PID kits exist for some machines. Before installing one, check how it affects your warranty, since modifying the electrical system of a machine can matter here. Give us a call or start a live chat and our team can tell you what applies to your model.
For a broader look at what to prioritize on a new machine, our testing team wrote about the espresso machine features that matter most in daily use.
Frequently Asked Questions
What does PID stand for on an espresso machine?
Proportional, integral, derivative. It describes the calculations a digital controller uses to manage the heating element so the boiler holds a set temperature instead of cycling across a wide range.
Is a PID better than a pressurestat?
It's more precise and usually easier to adjust. A pressurestat is simpler and very durable, and many well-regarded heat exchanger machines use one. Precision matters most on single boiler and dual boiler brew boilers, and less on heat exchangers, where a cooling flush still sets the final brew temperature.
What temperature should I set my PID to?
Start with the manufacturer's default and adjust by taste. Lighter roasts often benefit from a higher setting and darker roasts from a lower one. Change it in small steps and keep everything else the same so you can tell what the change did.
Do I still need to temperature surf with a PID?
Not on a single boiler or dual boiler brew boiler. The controller handles what surfing was meant to manage. On a heat exchanger machine you'll usually still run a brief flush before brewing.
Can I add a PID to my existing machine?
Kits exist for some popular models. Check the effect on your warranty first, and if you're unsure about the electrical work, have it installed professionally.
