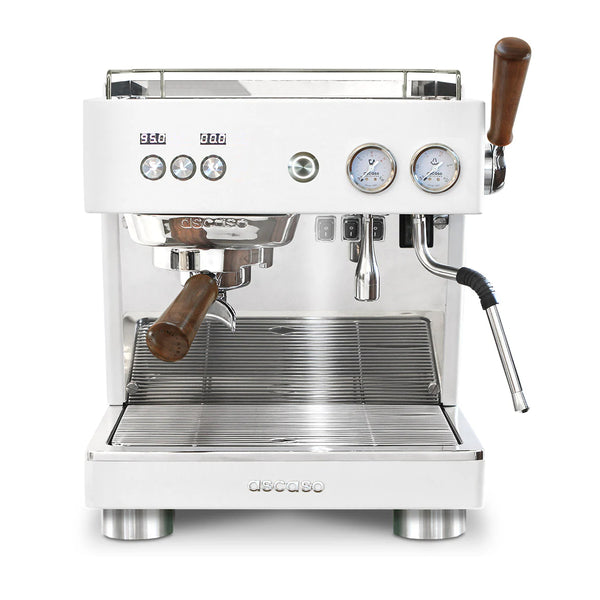

Ascaso Baby T Plus Espresso Machine

Before using the Baby T Plus for the first time, remove all packaging materials and place the machine on a stable, level counter with adequate clearance — allow at least 4 inches on each side and above for ventilation. Remove the portafilter, baskets, and drip tray and rinse them with warm water. Wipe the exterior with a damp cloth. Note: The Baby T Plus requires a dedicated 20-amp NEMA 5-20 receptacle — this is a T-shaped outlet distinct from a standard 15-amp household outlet. Verify your installation before powering on. Do not use a standard 15-amp outlet or an extension cord.

Fill the 2.5-liter water tank with fresh cold water and install it on the machine. The thermoblock group head heats rapidly — brew-ready in approximately 3 minutes — but the separate 2.5-liter steam boiler takes approximately 10 minutes to reach full steam pressure. Plan accordingly when first starting the machine.

The Baby T Plus uses Ascaso's Thermodynamic (T Technology) system: the group head thermoblock draws fresh water directly for each shot, never recycling boiler water. This means every espresso uses clean, fresh water at the precise programmed temperature.

Download the Ascaso Baby T app (iOS/Android) to configure all machine parameters via Bluetooth — temperature settings, preinfusion, shot volumes, auto on/off scheduling, and cleaning cycle triggers. Initial setup and parameter changes are much easier through the app than navigating the machine's front panel. Connect via Bluetooth before first use.

Before pulling the first shot, run the included backflush cycle. Insert the blind basket, lock in the portafilter, and run 3 short flush cycles using the XL/cleaning button. This clears any residual factory oils from the group solenoid and shower screen.

T Technology — Fresh Water Per Shot

Unlike single-boiler or traditional heat exchanger machines, the Baby T Plus never uses water from the steam boiler for espresso. The thermoblock group draws fresh water from the tank, heats it to the exact PID set temperature, and delivers it to the puck — then repeats cleanly for the next shot. This means you can pull back-to-back shots without temperature drift or stale boiler water flavors.

Simultaneous Brew and Steam

The separate 2.5-liter steam boiler provides continuous, high-volume steam independent of the brewing thermoblock. While extracting a shot, the steam boiler maintains full pressure — allowing a second barista to steam milk simultaneously without affecting shot temperature. For single-operator use, steam is ready immediately after a shot without any recovery time.

App-Based Configuration

Use the Ascaso Baby T app to set: brew temperature (in 1°F increments), steam boiler temperature, pre-infusion duration and pressure, shot volumes for all 3 brew buttons (single, double, XL), auto on/off schedule, standby mode, and to run cleaning programs. The app provides a much cleaner interface than the machine's front panel alone.

Three Brew Buttons

The Baby T Plus has three programmable brew buttons. Each can be set to a specific volumetric dose via the app. Button 1 is typically set to a single (7–9g/1oz), button 2 to a double (14–18g/2oz), and button 3 to an XL or lungo. All three are fully reconfigurable. Programming shot volumes via the app: select the button, start extraction, stop when the desired volume is in the cup — the volume is saved.

Pre-Infusion

Pre-infusion gently wets the coffee puck with low pressure before full extraction begins, helping to even out extraction and reduce channeling. It is particularly beneficial with freshly roasted, degassing coffee. Set pre-infusion time in the PID menu — 2–5 seconds is a good starting range. Finer grinds with higher doses benefit from longer pre-infusion.

Volumetric Shot Programming

Ascaso machines allow you to program single and double shot volumes so the pump stops automatically when the programmed volume is reached. To set: select the shot button (single or double), begin extraction, and press the button again when the desired volume is in the cup. The machine saves that volume for future shots. Start with 1.5 oz (44ml) for a double shot as a baseline.

Adjustable OPV

The over-pressure valve (OPV) controls the maximum brewing pressure. The factory default is set to approximately 9–10 bar, which is correct for most espresso. If you are seeing channeling, over-extraction, or using a lower-density puck, lowering the OPV to 8–9 bar can improve results. The OPV is accessible on the machine; consult the Ascaso-USA user guide at ascaso-usa.com for the adjustment procedure for your specific model.

Dialing In Espresso

Aim for a 1:2 ratio — double the output weight of the input dose. For 18g of coffee in, target 36g out in 25–35 seconds. If the shot runs too fast (under 20 seconds), grind finer. If it runs too slow (over 40 seconds), grind coarser. Use the analog pressure gauge during extraction — aim for 8–9 bar at peak. Tamp with consistent pressure (approximately 30 lbs) and level distribution.

Steaming Milk

Purge the steam wand for 2–3 seconds before steaming to expel any condensate. Submerge the tip just below the surface of cold milk and open the steam valve fully. Keep the tip near the surface to introduce air (stretch) for the first 3–4 seconds — you should hear a gentle hissing sound. Then submerge the tip slightly deeper to swirl and heat the milk to 140–150°F (60–65°C). Do not exceed 160°F — this denatures milk proteins and produces a flat, burned flavor. Wipe the wand immediately after each use and purge again.

Analog Pressure Gauge

The gauge reads group head pressure during extraction. At rest (no shot running), it should read near 0. During extraction, it should rise and hold between 8–10 bar in the green zone. Consistently under-pressure shots suggest a grind that is too coarse, under-dosing, or a partially clogged group screen. Consistently over-pressure suggests grind too fine or over-dosing.

Auto-Standby and Power Saving

The PID menu includes an auto-standby setting. When enabled, the machine will drop to a low-power state after a set period of inactivity. Wake it up by pressing any button — it will return to full brew temperature quickly. For morning routines, Ascaso machines heat up fast enough that auto-standby is a practical energy-saving option.

Energy Efficiency

The Baby T Plus uses up to 50% less energy than traditional dual-boiler machines. The thermoblock heating system reaches temperature quickly and maintains it efficiently, while the steam boiler only heats to pressure on demand. Setting the auto-off schedule via the app to match your daily routine maximizes energy savings.

Daily — After Each Session

After brewing, remove the portafilter and discard the puck. Rinse the portafilter basket under hot water. Wipe the group head gasket and shower screen with a damp cloth. Purge the steam wand for 2 seconds and wipe immediately with a clean cloth. Empty and rinse the drip tray. The Baby T Plus will prompt automatic rinse cycles on startup and shutdown — do not bypass these; they keep the internal circuits clean.

Automated Cleaning Cycles

The Baby T Plus has built-in automated cleaning programs accessible via the machine's panel or the app. The machine will also alert you when a cleaning cycle is due based on shot count. When the CLEAN indicator appears, run the prompted cycle before the next brew session. These cycles flush the group solenoid and internal circuits — they do not require backflushing tablets unless specified.

Weekly — Backflushing

Insert the blind basket into the portafilter. Add a small amount of espresso machine cleaner (Cafiza or equivalent). Lock the portafilter into the group head and use the XL button or the app's cleaning program to run 5 short cycles of 10 seconds on, 10 seconds off. Follow with 5 rinse cycles using the blind basket and no cleaner, then remove the portafilter and run 2 blank shots to flush residue completely.

Weekly — Group Head and Portafilter

Soak the portafilter basket in hot water for 10–15 minutes to dissolve oils and residue. Scrub with a group head brush. Wipe the shower screen and group gasket with a damp brush. Inspect the group gasket for cracks or deformation — replace if it no longer seals cleanly against the portafilter.

Weekly — Steam Wand

If milk residue has built up on the steam wand tip, soak it in a small cup of hot water with a few drops of milk frother cleaner for 10 minutes, then wipe clean. Ensure the steam tip holes are clear — use a pin to carefully clear any blocked holes.

Monthly — Backflushing (OPV-equipped models)

Backflushing cleans oils from the group head and three-way solenoid valve. Insert the included blind basket into the portafilter, add a small amount of espresso machine cleaner (such as Cafiza), lock in the portafilter, and run 3–5 short brew cycles of 10 seconds each, followed by 3–5 rinse cycles with no cleaner. Finish by running a blank shot with the blind basket to fully flush residue. Note: backflushing requires the OPV/solenoid setup — do not attempt if your model does not have a solenoid valve.

Descaling

Descale when the machine's performance changes — slower heating, reduced steam pressure, or temperature instability are early signs of scale buildup. Use Ascaso's recommended descaling solution or a citric acid-based espresso descaler. Follow the descaling procedure in your machine's user guide available at ascaso-usa.com. Do not use vinegar — it can corrode internal components. After descaling, run at least 3 full tanks of fresh water through the machine to completely flush any residue.

Water Tank

Remove and rinse the water tank weekly. If you notice any sliminess or discoloration, wash it with warm soapy water, rinse thoroughly, and air dry before refilling. Do not use the machine with an empty or dry tank.

Steam Boiler Slow to Reach Pressure

The 2.5-liter steam boiler takes approximately 10 minutes to reach full operating pressure from cold. This is normal — the thermoblock group head heats to brew-ready in 3 minutes, but plan for the additional time if you need steam for milk drinks right away. If steam pressure is consistently low or takes significantly longer than 10 minutes, descaling may be needed.

App Not Connecting via Bluetooth

Ensure Bluetooth is enabled on your phone and the machine is powered on. Stand within 3 feet of the machine for initial pairing. If the app cannot find the machine, toggle Bluetooth off and on on your phone, then retry. If issues persist, check the Ascaso app for updates or visit ascaso-usa.com for troubleshooting guides.

Auto On/Off Not Working

The scheduled on/off function is configured in the app. Verify the correct days of the week and times are set, and that the machine is in standby (not fully off) when the scheduled on time occurs — the scheduled on function wakes the machine from standby, it cannot power it on from a fully off state.

Allow 3–5 full minutes after power-on for the thermoblock to stabilize. If the PID reads a temperature far above or below the set point and doesn't stabilize, power the machine off for 30 seconds and restart. If the issue persists, contact Ascaso or SCG — thermoblock sensor faults are a service-level repair.

Espresso Running Too Fast / Weak

Grind finer, increase dose by 0.5–1g, or tamp with more consistent pressure. Check that the shower screen is clean and the portafilter basket is not damaged. Confirm the PID temperature is at the correct set point. If using pressurized baskets, ensure they're fully clean — clogged holes produce channeling that reads as fast flow.

Espresso Running Too Slow / No Flow

Grind coarser, reduce dose, or reduce tamping pressure. Check the OPV is not set too low. Ensure the group screen is not blocked with compacted grounds. If the pump sounds strained and no water flows, the group may be blocked — remove the portafilter and run a blank shot to confirm water flows freely from the group head.

Bitter or Over-Extracted Shots

Lower the brew temperature by 2–3°F, grind slightly coarser, or reduce pre-infusion time. Bitter shots often indicate too-hot extraction or over-exposure. Check that your dose and ratio are in range (approximately 1:2 in/out).

Sour or Under-Extracted Shots

Increase brew temperature by 2–3°F, grind finer, or increase pre-infusion time. Sour shots indicate insufficient extraction. Also verify that your coffee is not past its prime — stale coffee resists even extraction.

Steam Pressure Weak

Allow more time for the steam boiler or thermoblock to reach full steam temperature after pulling a shot. Do not attempt to steam immediately after a shot on single-thermoblock machines — wait 30–60 seconds. If steam is consistently weak across all uses, descaling may be needed, or the steam tip may be partially blocked.

Portafilter Difficult to Lock In

This usually means the group gasket has swollen or hardened with age. If newly installed, run several cycles to soften the gasket. If the gasket is cracked, flat, or has been in use for 1–2 years, replace it. Always lock the portafilter with the handle at the 8–9 o'clock position before rotating to the locked 4–5 o'clock position for correct alignment.

Machine Leaking from Group Head

A leaking group head is almost always a worn or misaligned group gasket. Power off and unplug the machine, allow it to cool, then replace the group gasket. Ascaso group gaskets are available at ascaso-usa.com. If leaking continues after gasket replacement, contact Ascaso support.

Warranty and Support

Warranty and Support

The Ascaso Baby T Plus carries a 5-year warranty on boilers and group heads, and a 2-year warranty on all other parts. For warranty service, contact Seattle Coffee Gear at seattlecoffeegear.com/policies/contact-information, call 866-372-4734, or email service@seattlecoffeegear.com. You may also contact Ascaso USA directly at ascaso-usa.com.
