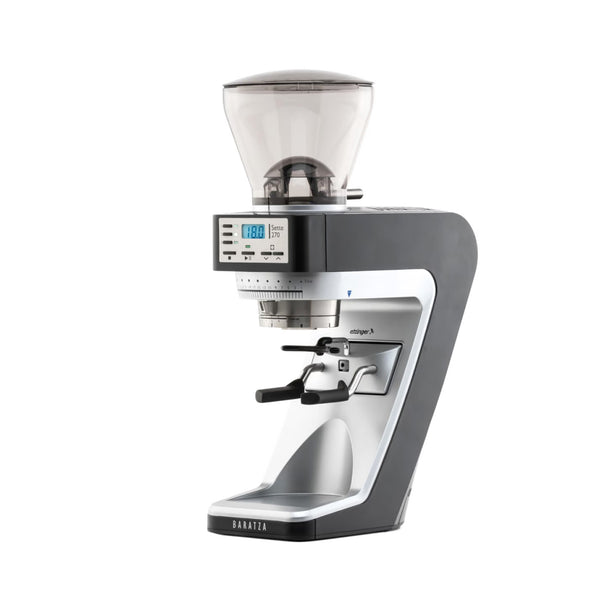

Baratza Sette 270 Espresso Grinder

Before using the Sette 270 for the first time, remove all packaging and hand-wash the bean hopper, hopper lid, and grounds bin (or dosing cup if included) in warm soapy water. Rinse and let air dry completely. Do not wash burrs with water — this will cause rust. Do not put any plastic parts in the dishwasher.

Do not wash the grind adjustment assembly or burrs with water. Hand-wash only the hopper, hopper lid, grounds bin, and removable grounds tray.

Season new burrs before your first real grind: run 30–50g of whole beans through and discard the output. New burrs have micro-burrs on the cutting edges that affect consistency until broken in. After seasoning, the grinder is ready to dial in.

Place the grinder on a stable, flat surface near a standard household outlet. Baratza grinders are designed for home use and operate on standard 120V AC power. Grind a dose at a time — these grinders are not designed for continuous extended runs.

The Sette 270 grinds directly downward into a portafilter or grounds bin using an inverted grinding mechanism — the outer ring burr rotates while the inner burr is stationary, and grounds fall straight down with minimal retention. This design produces very low retention (under 0.5g) and fast grinding speeds (2–3x faster than conventional grinders at equivalent settings).

The Sette 270 has 270 grind settings across two adjustment mechanisms: a macro lever on the back for large range jumps, and a stepless micro adjustment ring on the front for fine-tuning within a macro step. This combination provides both broad range coverage and high resolution for espresso dialing. The macro lever has 9 positions; within each macro position the micro ring provides 30 stepless sub-positions.

To set up for portafilter grinding: install the portafilter hook by sliding it onto the mounting point under the grind chute. Adjust the arms to hold your portafilter handle securely. The convertible device arms can hold a variety of portafilter sizes as well as the grounds bin.

Macro and Micro Adjustment

The Sette 270 has two adjustment mechanisms: a macro collar numbered 1 (finest) to 31 (coarsest) for large range changes, and a stepless micro ring labeled A (finest) to I (coarsest) for fine-tuning within a macro step. For espresso, start at macro 3–9 with the micro at E (center), then use the micro ring to dial in shot time in small increments. Always make both adjustments with the motor running to prevent burr damage.

Direct-to-Portafilter Workflow

Convert the device arms to portafilter position, adjust the portafilter hook so the basket sits level, set your dose time on the control panel, and press start. The Sette grinds at 3.5–5.5g per second — a typical 18g dose takes 5–8 seconds at espresso settings. Grounds fall directly into the portafilter with very low retention. Tap the portafilter or use a WDT tool to distribute grounds evenly before tamping.

270 Total Settings

The Sette 270 has 31 macro steps, each subdivided by the 9-position micro ring (A–I), yielding 270 total combinations. Because adjacent macro steps overlap slightly at the micro extremes, you have near-continuous adjustment across the full espresso range. Use macro to target the rough grind zone and micro for the precise 1–2 second adjustments that dial in a shot.

Low Retention Design

The Sette's straight-through grind path leaves very little coffee in the burr chamber — typically under 0.5g. After changing beans or making a large grind adjustment, purge 1–2g before grinding your actual dose to clear any previous grind from the chamber.

Timer Precision

The digital timer operates at 0.01-second precision for very repeatable time-based dosing. Once grind size is dialed in, calibrate the timer to match your target dose weight and it will repeat reliably shot to shot.

Speed

The Sette 270 grinds at 3.5–5.5g per second depending on setting — significantly faster than conventional conical grinders. The belt-drive planetary gear system transfers torque efficiently, producing fast throughput with minimal heat buildup.

Daily — Grounds Tray

Remove and empty the removable silicone grounds tray from the bottom of the grounds bin after each session. Coffee oils accumulate here quickly with the Sette's direct-through design. Rinse the tray with warm water and dry before reinstalling.

Weekly — Hopper and Bin

Hand-wash the hopper, hopper lid, and grounds bin in warm soapy water. Do not wash the grind adjustment assembly or burrs — brush them with a dry brush only.

Gearbox

The Sette's planetary gear system is a wear item — most users replace it every 1–3 years depending on use frequency. When the grinder begins making a grinding or clicking sound from the gearbox (distinct from normal operation noise), it is time to replace. Replacement gearboxes are available at baratza.com and are a user-serviceable part.

Monthly — Grounds Bin and Hopper

Wash the grounds bin, hopper, and hopper lid with warm soapy water. Rinse thoroughly and allow to air dry completely before reinstalling. If grounds have built up on the chute walls inside the grinder, use a brush to clear them.

Quarterly — Grinder Cleaning Tablets

Run a full cycle of grinder cleaning tablets (Grindz or equivalent) through the grinder at a medium setting. This removes coffee oil buildup from burr surfaces and the grinding chamber. After the tablet cycle, run 30g of actual coffee beans through to purge any tablet residue. Do not use rice — it can damage the burrs and internal components.

Clogs

If the grinder runs but no grounds fall into the bin, the chute may be clogged with compacted coffee powder. This most often happens from over-filling the grounds bin, grinding oily or dark-roasted beans without regular cleaning, or grinding flavored coffee. Visit baratza.com/troubleshooting for step-by-step unclogging instructions specific to your model.

Grinder Won't Start

Confirm the hopper is fully seated and locked — the grinder has a safety interlock that prevents starting without the hopper installed. Ensure the power cord is plugged in and the outlet is live. If the motor ran for a long time, a thermal overload may have triggered; unplug, wait 15 minutes, and try again.

Grind Too Coarse / Weak Coffee

Move to a lower (finer) setting. Adjust while the grinder is running or completely empty. Changes of 2–3 settings at a time are enough for drip methods; 1-setting increments for espresso.

Gearbox Noise

A clicking or grinding noise from the gear area that develops over time indicates gearbox wear. This is a known maintenance item for the Sette platform. Replacement gearboxes are available at baratza.com and are user-installable with basic tools. Video instructions are available on the Baratza YouTube channel.

Grind Too Fine / Slow Espresso or Clogged Filter

Move to a higher (coarser) setting. For espresso, adjust 1 click at a time. If the portafilter is completely blocked with no flow, jump 3–4 settings coarser and work back in.

Inconsistent Grind / Fines Surge

Clean the burrs with a brush — oil and grounds buildup is the most common cause of inconsistency. If the grinder is new, the burrs may simply need more seasoning. Run another 50g through and retest.

Grinding Noise / Rattling

Check that the hopper is fully seated and locked. Confirm the ring burr is properly installed with the red alignment tab in the correct position. A bean fragment or foreign object occasionally gets lodged between the burrs — if the noise is sudden and severe, stop the grinder immediately, remove the hopper and ring burr, and inspect.

Warranty and Support

Baratza grinders carry a 1-year manufacturer warranty covering defects in materials and workmanship. For warranty service or troubleshooting, visit baratza.com or contact Baratza support at support@baratza.com / 877-701-2021. Baratza also maintains a full troubleshooting library and video repair guides at baratza.com.
