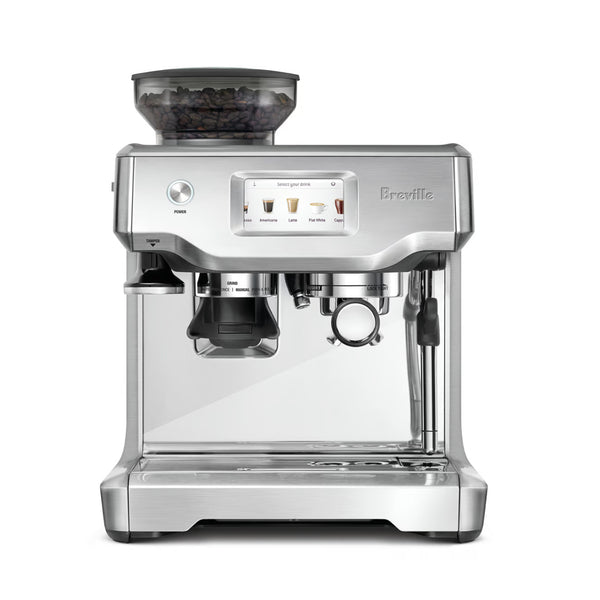

Breville Barista Touch Espresso Machine

Before first use, remove all labels and packaging. Remove the water tank from the back, take out the water filter and holder bag, and wash the tank, portafilter, filter baskets, and milk jug with warm water and gentle dish soap. Soak the water filter in cold water for 5 minutes, install in the holder, and seat in the tank. Fill with cold water and replace the tank.

Press POWER to turn the machine on. The color touchscreen will guide you through first-use setup, including water hardness testing. Use the included water hardness test strip — dip in your fill water for one minute and match the result to the scale shown. Enter the hardness level (1–5) on the touchscreen to calibrate the machine's filter replacement reminder. If your water tests at 4 or 5, consider using filtered or spring water.

The Barista Touch has an 8.8oz (250g) bean hopper with a locking system. Load with fresh beans and lock the hopper. Set the Grind Size using the dial on the side of the machine — touchscreen grind size display is informational only; physical dial adjusts it. The machine uses ThermoJet heating and is ready in 3 seconds.

The machine enters standby automatically after inactivity. To turn off: press POWER from standby.

Color Touchscreen — Drinks Menu

Swipe and select your drink from the home screen: Espresso, Americano, Latte, Flat White, or Cappuccino. Each drink screen allows you to customize grind duration (single/double/custom), milk temperature, and milk foam level. Saved settings become your personal favorites. The Help & Tip icon on screen provides the on-machine Barista Touch guide for step-by-step assistance.

Automatic Milk Texturing

The Barista Touch auto-textures milk hands-free. Pour cold milk into the stainless jug (fill to the jug line for your drink), submerge the steam wand, select your milk settings on screen, and press the milk button. The wand steams to the selected temperature and foam level, then auto-purges when complete. The auto-purge releases a burst of steam when the wand is lowered — keep clear of the wand area.

Grind Size and Amount

The Grind Size dial on the side of the machine adjusts the burr gap — finer for slower, stronger shots; coarser for faster, lighter ones. The touchscreen's Grind button adjusts the grind duration (dose). Make grind size adjustments one step at a time and pull a test shot before adjusting further. Grind size changes take effect after a brief purge.

Pulling a Shot

Insert your filter basket and place the portafilter in the hands-free cradle. The machine grinds and doses automatically based on the touchscreen selection. After grinding, distribute, tamp with the integrated tamper, use the Razor to trim, and lock the portafilter into the group head. Press Brew on the drink screen to extract with low-pressure pre-infusion.

Dosing Funnel

The Dosing Funnel 54 clips onto the portafilter basket during grinding to catch stray grounds. Remove it before tamping.

Adjustable Upper Burr

If the grind range doesn't accommodate a specific bean, the upper burr can be repositioned with the Allen key to extend the fine end of the range. Make one adjustment at a time. Full instructions are in the Barista Touch instruction book.

Daily — After Each Session

After each brewing session, remove and knock out the spent puck, rinse the portafilter and basket under hot water, and wipe the group head gasket and shower screen with a damp cloth. Purge the steam wand for 2–3 seconds then wipe immediately with a damp cloth. Empty and rinse the drip tray.

Weekly — Group Head Cleaning Cycle

When the CLEAN/DESCALE indicator illuminates on the Barista Touch, run the automatic cleaning cycle using the included cleaning disc and Breville espresso cleaning tablet. Follow the on-machine prompts or the Care & Cleaning section of the instruction book. This cycle flushes coffee oils from the group head and solenoid valve. Do not skip prompted cleaning cycles — oil buildup causes bitter flavors and shortens component life.

Monthly — Water Filter

Replace the water filter in the tank every 3 months or after 40 liters (approximately 10.6 US gallons) of use. Soak the new filter in cold water for 5 minutes, rinse the holder, insert the filter, and reinstall in the tank. Keeping the filter fresh reduces descaling frequency and improves taste.

Descaling

Descale when the CLEAN/DESCALE light illuminates on the Barista Touch or when you notice reduced steam power, slower heating, or temperature instability. Use Breville's descaling powder or a Breville-recommended descaling solution. Follow the descaling procedure in the instruction book. Do not use vinegar — it can damage internal components. After descaling, run at least 3 full rinse cycles with fresh water before brewing.

Steam Wand

If the steam wand tip becomes blocked, use the included steam wand cleaning tool (pin) to clear the holes. For milk residue buildup, soak the tip in warm water and use a damp cloth to wipe clean. Never allow milk to dry on the steam wand — wipe immediately after every use.

Portafilter and Baskets

Wash the portafilter and filter baskets by hand with warm soapy water. Do not put the portafilter, tamper, or any espresso accessories in the dishwasher.

No Coffee Flow / Very Slow Flow

Grind is too fine, dose is too high, or tamp is too firm. Adjust grind 1–2 settings coarser, reduce dose by 1–2g, or reduce tamping pressure. If using single wall baskets, the grind and dose must be dialed in precisely — switch to dual wall baskets for more forgiving extraction while dialing in.

Coffee Running Too Fast / Weak Flavor

Grind is too coarse, dose is too low, or tamp is too light. Adjust grind 1–2 settings finer and ensure the dose fills the basket correctly. Use the Razor trimming tool (if included) to verify dose level is correct before tamping.

Espresso Too Bitter

Over-extraction — grind coarser, reduce dose, or lower brew temperature. Check that the machine has fully heated before pulling a shot; pulling on a cold machine extracts unevenly. Also verify the group head and portafilter are clean — residual oils cause bitterness.

Espresso Not Hot Enough

Preheat your cups — place them on the cup warming tray or fill with hot water and discard before brewing. Ensure the machine has fully heated before extracting. Run a blank shot (no coffee) through the group head to bring it to temperature if it has been idle.

No Steam / Weak Steam

Allow the machine to fully heat to steam-ready temperature before attempting to steam. Check that the steam wand tip holes are not blocked — use the cleaning pin to clear them. If steam pressure has decreased over time, descaling is likely needed.

CLEAN / DESCALE Light On

Run the prompted cleaning or descaling cycle immediately. Do not continue brewing through a maintenance alert — the Barista Touch requires cleaning to maintain performance and component longevity. Follow the on-machine prompts or refer to the Care & Cleaning section of the instruction book.

Machine Won't Start

Ensure the water tank is filled above the minimum line and properly seated. Confirm the portafilter is fully locked into the group head — the machine will not start if the portafilter is not secured. Check that the power cord is fully connected.

Warranty and Support

Breville products carry a 1-year limited product warranty covering defects in materials and workmanship. For warranty service or support, call Breville at 1-866-BREVILLE (1-866-273-8455) or visit breville.com.
